Company Profile

Design bureau of special instrument engineering (KBSP) develops and manufactures devices and equipment for security printed product quality control in production and circulation to solve criminalistics operational and expert tasks, in the interests on Earth and interplanetary space exploration.

KBSP devices designed for physical quantity measurements shall be approved by Gosstandart of Russia as measuring equipment, registered in the State Register of Measuring Equipment and provided with metrological support when in service.

In addition to job-proven solutions delivery and customization Design bureau of special instrument engineering develops and manufactures customer-requested technical equipment.

How to use this table

This table when testing the device "DMe-03" standard alloy samples, including test needles, and other analytical methods previously analyzed samples. The first samples were subjected to testing alloys mentioned in the Russian Federation State Standard GOST P 51152-98 "Alloys based on precious metals fashion jewelery".

When using the tables and comparing the results on the test samples indicated in the tables is necessary, in order to improve the reliability of testing:

• every 80--100 measurements on test samples to test the built-in reference electrode and a reference sample obtained in the value subtracted from the U2 U1 and U2, to test samples;
use specified in the description to the device "DMe-03" by contacting the probe with the product without previously embossed drop solution; every 80
• remember that these average values in the tables are actually an average interval of 18-20 mV (± 10mV), as this range results minimal discontinuities composition and structure of the alloy;
• necessary in order to obtain more information, to carry out at least 3 measurements on different parts of the sample.

As the research of different types of alloys of this table will be constantly updated in subsequent editions.

Partners and marketing

«Specialized Equipment Engineering Design Bureau» working with a number of industrial enterprises and public sector organizations in the development and delivery of parts for these special instruments and equipment.

Among them - the Central Bank of the Russian Federation, «Goznak» Enterprise Roscosmos, Russian Federal Security Service, the Ministry of Defence of Russia, the Investigative Committee of the Russian Federation and others.

Development of technical means is conducted, usually in close cooperation with our customers, which makes the product quality characteristics as close to the customer requirements.

Contacts
105187 Moscow, Shcherbakovskaya 53
info@kbsp.ru
(495)790-72-84,(495)366-28-95,(495)223-26-58(Production).

Feedback form

Name: Message: E-mail:

CSP

Compact spectrophotometer CSP, based on acousto-optical tunable filter is designed to measure the relative diffuse reflectance spectra of flat nonluminescent surfaces of various materials ( paper, cardboard, plastic) , coatings , food samples in the near-infrared region of the optical spectrum. The instrument allows the positioning of the surface measured with the help of built-in color video camera output spectra measured on its own display, transmit data on the measured objects to a personal computer for later comparison, research and detailed analysis.

PC software to work with the CSP:

Back

Table precious metals

(in accordance with Federal law "On Precious Metals and Precious Stonesraquo" Number41-FZ of 26.03.1998 city)
(specific gravity, melting point, the content in the earth's crust)

Back

Part V. Gold purity

This table shows the average values of test results directly to industrial designs of gold at one of the (semi-finished).

Back

As using the device "DMe-03", quickly distinguish the product from precious metals from products not containing precious metals

(in accordance with Federal law "On Precious Metals and Precious Stonesraquo" Number41-FZ of 26.03.1998 city)

Using the device "DMe-03" in most cases, you can easily distinguish articles of base metal of the articles containing precious metals.
It must be particularly carefully follow the instructions manual supplied with the device of a thorough cleaning of the surface on which the test is conducted.
The following are characteristic features, which can distinguish the product from the no nobel metals.
Back

The values of the potentials U1 and U2 on platinum alloys
Back

Indicative value of the potential range U1 and U2 for various alloys of precious metals

(see. the following chapters of this guide).
The given values are only for quick orientation, what section of the handbook must be used for testing.
Back

The chemical composition of alloys based on palladium GOST- 51152-98

Back

The values of the potentials U1 and U2 on palladium alloys

Back

Part III.Silver and silver-copper alloys
Back

Handbook for experts using an electrochemical detector DMe-03
Back

The chemical composition of alloys based on silver GOST - 51152-98

Back

The value of the potential U1 and U2 on silver-copper alloys

Back

Part IV. Gold bullion (99.99)
Back

Features silver-copper alloys
Back

The ratio of metric units and carat gold alloys samples

Back

Influence of technological operations on uniformity of products from precious metals

All products made of precious metals are usually never made of pure metals; used in their manufacture alloys, in which, along with the precious, non-precious metals are included.
All alloys in contrast to pure metals, not solidify at a certain temperature (for pure precious metal is specified in the first sections of this guide), and crystallize in the temperature range (see. Table). Thus, depending on the casting conditions, cooling rate, etc. casting on the micro level never obtained homogeneous, the upper layers of castings always enriched in the metal within the alloy, melting point highest. Therefore, to make the product homogeneous composition and in order to make the size of the individual grains, the minimum crystals, products must be subjected to a special, often very long, annealing.
Unfortunately, to reduce the cost of the production process, manufacturers often do not properly carry out this operation, and for certain alloys make them fairly uniform almost unreal.
When measuring instruments "DMe-03" such local heterogeneity of the alloy is very well identified. This spread of values when measuring potential in different areas of the surface may be many tens of millivolts (not ± 10 mV). For specific alloys placed in these tables, it is specifically stated.
It is clear that the heterogeneity of the alloy (at an average grade of precious metal that meet the specified sample) dramatically increases the potential for corrosion, mechanical damage, etc., ie, significantly affects the quality of products produced from such alloys.
Impurities of metals and metalloid found in some new ligatures (such as silicon) may also have a significant effect on the readings. It is stipulated in the relevant sections of the manual.
Back

Part I. Platinum base alloys

Grayish white plastic metal, the melting point and boiling — 2041,4 K (1768,3 °C) и 4098 K (3825 °C)
Electrical Resistivity — 0,098 mkOm·м (to 0 °С)
Density 21,09—21,45 g/sm³
Nuclear density 6,62·1022 atoms/sm³
Brinell hardness - 50 kgf / mm²
Face-centered cubic crystal lattice, a = 0.392 nm, Z = 4, space group Fm3m
Back

ILM Series Devices

ILM series portable devices designed to measure the reduced brightness of luminescence under the action of ultraviolet planar objects: paper (writing, graphic arts) and images printed on paper, as well as any other materials (fabrics, polymers) or coatings. ILM devices can be used for the examination of documents and works of art (paintings, icons).
Devices allow positioning through sighting device the measurements to display, transfer data to a PC.
Modifications of devices:

• Device for measuring weak luminescent objects, such as paper, paints grown old;
• Device for measuring objects, luminescent with high intensity, such as fluorescent dyes.

The main applications of devices — the company associated with the manufacture and use of special types of paper and expert law enforcement units, in the examination of works of art.

Back

ILM-P Series Devices

Desktop ILM-P Series devices are designed to control powder optical properties. Devices are used in chemical industry and in activities requiring assessment of raw material or finished product specific quality characteristics.

Back

FCD-501, FCD-502

Photodetectors FCD-501 and FCD-502 are designed for use in measurement systems, based on the basis of the MDR-23 and MDR-41. Device FCD-501 and FCD-502 installed at the exit slit of the monochromator and serve for processing the measurement results in the formation of a digital code and its subsequent transmission to the personal computer. Similar in its dimensions and forms, FCD different purpose: FCD-501 - a highly sensitive device, FCD-502 - a high-speed device. The devices operate in a range of hard ultraviolet to near infrared.
Distinctive features of FCD are:

• Easy to install and connect to the FCD monochromator 23 and MDS-41.
• High signal/noise ratio due to the use of Peltier elements for cooling the photodiode and the ADC.
• High measurement speed during one measurement and performance of the built settlement operations for FCD-501 is from 100 ms to 4 s, for FCD-502 - from 5 ms to 4 s.
• Ability variant versions FCD - a Si or InGaAs photodiode. In this case, the working wavelength range FCD:
• a Si photodiode - from 200 to 1100 nm;
• InGaAs photodiode - from 800 to 1600 nm, with the possibility for use FCD in an extended range of 700 to 1700 nm.
• To varying connection speeds via RS 232C - 19200 kbit/s or 115,200 kbit/s.

On the characteristics of our company FCD exceed the known analogues.

Back

FCD-502-AF

Amplifier-shaper FCD-502-AF is used in a measurement system in conjunction with the light receiving device FCD-502 or FL-1040 installation Phosphorimeter manufactured by Horiba Jobin Yvon. The device controls the LED and laser sources and used to study the kinetic properties of luminescent substances and materials.
The device provides the following functions:

• on / off up to two laser and up to two LED light sources independently by two channels on command from the installation or in a cyclic mode;
• smooth adjustment and indication of current values of LED light sources independently for the two channels;
• the inclusion of LED light sources with a given current in the steady state.

Back

IKS-450

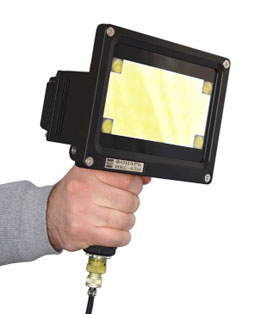

Mobile forensic powerful source of light. Designed to work on the criminal scene.
The complete IKS-450 includes:

• Lantern
• Points-filter for the operator
• Filters for the camera lens
• Two batteries are built into backpacks
• Battery Charger
• Tripod
• Cable
• AC adapter
• Shockproof and waterproof carrying case

Back

Devis-18

Spectral photorecorder Devis-18 is designed to produce digital images of the luminescence of the objects under the action of ultraviolet and infrared radiation. The instrument is used primarily for the original registration of the security marking on the artistic values. In addition, Devis-18 can be used to work with documents and other objects of forensic research.

Back

Disteh-VSK

Video Spectral Comparator Distex - RCS is designed for full range of research documents and security printing to determine the methods of manufacture, identify full or partial counterfeit. The device provides the ability to automate standard research procedures.

• 2 dedicated digital camcorder
• 16 illumination sources, from 254 nm to 940 nm, a different geometry
• 16 optimally selected filters
• developed software
• automated algorithms research
Back

Devis-04

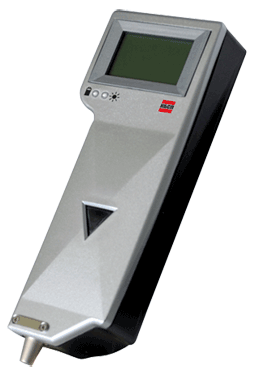

Detector Devis 04 - professional device for identification of high-tech modern defenses. Exclusive technology unit identification Devis -04 allows you to quickly determine the authenticity:

• Federal and special excise stamps on labels M2 and M3;
• Bank of Russia banknotes modification 2010 - by label M4;
• Ordinary passports - by label M1;
• OSAGO policies, tobacco brand new sample, bills of exchange and certificates of deposit Sberbank coupons state technical inspection of vehicles - by label M3.

Capabilities of the device are not limited to test these products and protective elements series "M" . The device can easily be overridden by the user in the remote producer support for modified and new security features.
Availability calibration function allows the device to detect elements confidently on any products and surfaces.
Identification results are reflected on the screen and duplicated for each element characteristic sound and light signals.
Added convenience when working is no need to hold the power button.

Back

Devis-05

Visualization flare effect it paints with kinetic properties

• 5000 authentic check banknotes Bank of Russia
• Protective filter and safe design
• Devis-05 compact device can reliably verify the authenticity of the Bank of Russia banknotes face value of 5,000 rubles, federal special stamps sample in 2011 and 2012 on alcohol products, as well as other printing products with modern types of protections.

Devis-05 detector visualizes flare effects paints with kinetic properties. The energy previously stored in the ink using a white backlight, and then is released as a flash for special effects lighting.

Example visualization of a kinetic effect:


The mark on the banknote denomination Bank of Russia 5000 rubles issue 2010

Energy storage in the ink by using an LED light source


Flash and change the label to glow orange-red to dark green

Back

Devis-07A3/Devis-07A3UV

Detectors Devis-07A3 /07A3UV - portable devices for operational control of the availability of special protection for security printing in the first place - on the federal and special excise stamps.
Features of detectors:

• noncontact detection of special protection;
• high sensitivity and selectivity;
• authentic registration special elements.

In addition to Devis-07A3UV:

• concurrent verification of luminescent elements;
• original pulsed ultraviolet light;
• the possibility of UV control with controlled light.

Back

Devis-03M

Compact visualizer Devis-03M is designed to control the security elements in printing products.
Fitted with a special camera with a set of highlights and monitor visualizer Devis-03M provides effective control authentication forms and details of documents STSI, Sberbank promissory notes , and special federal excise stamps, mats, and other security products.
From the device monitors the quality and printing methods , micro-, IR protection, UV luminescence of paper, paint and fibers, as well as labels Goznaka protecting details of the documents.
Special features:
6 modes of the device:

• Upright light;
• Oblique light;
• Ultraviolet light;
• Infrared light - label M1;
• Infrared light - label M2 ;
• Mixed mode( switching between M1 and M2).
• Screen - 2.5 inches;
• Work on internal battery , mains or car cigarette lighter;
• Minimum requirements for the operator.

Back

Card-reader Devis-ID

Card reader Devis-ID is a modern and convenient device for authentication, read and write information. In the card-reader Devis-ID combined automatic control mark to FSUE «Goznak» polis on CHI and UEC and function card reader.
The instrument includes:

• Card Reader «Devis-ID»;
• Passport;
• Manual;
• CD-ROM with driver and manual in electronic form;
• Packing box.

Back

Special sensors

Optical sensors are designed to record change color and other optical effects in automated control systems products.

Back

Devis-07АС

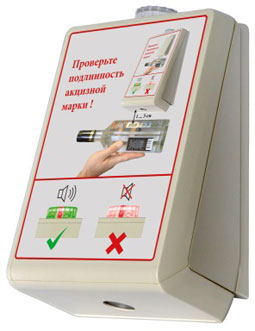

Devis-07AC detector can be suspended vertically on a wall or placed horizontally on the counter. To test the brand enough to bring her product to the sensor device and get the result.

• Fixed version for salesrooms
• Automatic verification of the security element
• Participation buyers authentication excise stamps

Back

AOTF

AOTF - acousto-optic tunable filters, designed and produced in KBSP, characterized by small size, wide spectral range, high spectral resolution, the possibility of use in harsh environments. Our filters are used in industry, space research.
Board acoustooptic preselector for Echelle high-resolution spectrometer used for space exploration of planetary atmospheres. Preselector filter is designed for higher-order Echelle grating.
Part of the acousto-optic monochromator board hyperspectrometer for microscopic studies of soil samples in the near-IR range (0.9 - 3.5 microns).

Back

HSV

HSV-camera -- hyper-spectral video camera based on area imager and acousto-optic tunable filter. HSV-camera serves to obtain and analyze spectral images of any test objects (base maps, environmental settings, subjects of criminalistics and industrial examination). Embedded computer provides registration and processing of measurement data with the operational analysis results output to the display.
Special features:

• Cooled matrix near-IR photodetector based on InGaAs;
• Acousto-optic tunable filter with high spectral resolution;
• A secure version for operation in the field.

Back

DMe-03

Electrochemical metal detector DMe-03 is designed for:

• rapid identification of metals, precious metals, alloys;
• non-destructive control of precious metal wares – bullions, jewelry, coins;
• controlling precious metal wares manufacturing process;
• determining fake jewelry (both by identifying ware composition and precious metal coating of non-precious jewelry);
• controlling billets of ferrous and non-ferrous metal;
• controlling the thickness of gold coating in electroplating.

DMe-03 incorporates capabilities of two types of the second-generation electrochemical metal detectors: when operated in jewelry mode it identifies metal grades, while expert mode enables measuring potentials of any allows. The obtained results are displayed on Detector screen. When in jewelry mode Detector allows identification of the following alloys:

• Gold 9kt fine
• Gold 14kt, standard
• Gold 14kt, non-standard
• Gold 18kt fine
• Gold 23kt fine
• Gold 24kt fine
• Sterling silver
• Coin silver
• Palladium
• White gold
• Platinum and platinum alloys

Detector enables measuring potential values when operated in expert mode. Using optional Reference Books and Software it is possible to give accurate opinion on tested alloy or ware. DMe-03 detector is a unique device due to its parameters and capabilities unparalleled in Russia and abroad. Detector is based on the most up-to-date hardware components and shows high reliability and ease of use. It has more compact design, computer connection, and battery power. Detector standard software duplicates data displayed in device on PC screen and also enables to print last measurement results. DMe-03 incorporates 15-year operation experience with first and second-generation electrochemical metal detectors.
Delivery package:

• Electronic module
• Probe
• Power adaptor
• Tissues
• Electrolyte bulb
• Special needle
• Eraser
• Additional contact device with a clip
• Software on CD
• User Manual
• Рackage

Back

Devis-Visan

• Visualization of all types of anti-Stokes.
• Red, green and blue luminescence
• Protective Filter and safe manual

Portable device Devis -Visan allows control security features based on anti-Stokes luminescence. For efficiency labels in the anti-Stokes imaging device used a special laser that provides enhanced anti-Stokes field illumination tags, as well as implemented a shaded area of observation. Security expert from the action of powerful laser radiation invisible achieved a set of measures: from the eyepiece - using a special filter in the observation by the working surface of the device - using two position sensors, switching off the laser device in the separation of the test surface.

Sensors position

Back

Case IDC

Case IDC (Identification Data Capture) produced by KBSP designed to collect identification and biometric data needed for the subsequent manufacture of personal documents, including the state of the sample (with FSUE "Goznak"). Aluminum housing Case IDC protects incoming equipment in it from external influences - moisture, dust, bumps and falls from a small height (0.6 m.). Case IDC mobile and easy to use, works in offline mode, up to 4 hours. Equipment quickly adjusted to the place of work, even by untrained personnel. IDC case can be divided into two work areas - the zone of the operator and the user area.
In the zone of the operator includes the following devices:

• notebook to enter the identity and support the work of all devices;
• Reader smart card;
• camcorder on a tripod;
• barcode scanner (optional);
• available external ports notebook:
• 2 USB-ports for connecting printers, flash cards and other;
• Port 8P8C (for LAN connection).

In the zone of the user includes the following devices:

• signature input device;
• fingerprint reader (optional).

Modifications Case IDC involve the collection of data for the manufacture of state documents (driver's license, the policy of compulsory health insurance, universal electronic card - UEC), and any other documents in the form of cards (badges, identification cards, social security cards).

Back

Special laminating-cutting

Devices for laminating and cutting a document format ID 1. intended for the manufacture of complex multi-layer articles that may include layers of materials with different physical and mechanical properties. Modes lamination (lamination temperature, pressure, residence time during lamination, the holding time during cooling under pressure) can be set over a wide range for optimum results.
Laminating apparatus allow to obtain protective elements on the surface layer of the lamination. Protection elements are relief image, identifiable both visually and to the touch. Relief image can be given by any image, such as a customer's logo.
Felling of documents produced gapless stamp that allows you to receive a flat edge on multi-layer products.
Devices can serve as laboratory equipment, the development of new instruments and for developing optimal technological modes of production of documents on automated lines.
In model 1, bookmark products made by hand in the area of lamination and cutting zone.
Model 1:

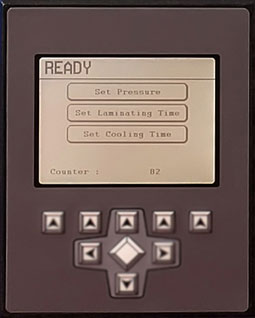

View of menu - Model 1:


In model 2, the product is put in the reception area, laminating and punching operations are carried out successively in the automatic mode.

Model 2:


View of menu - Model 2:


Back

Printer with secure printing

Inkjet printer with secure against forgery printing. Implemented on the basis of the printer Epson Stylus Photo R800. Protection against counterfeit printing is carried out through the use of original cartridges with ink protected and specialized software.

Back

Search

• Criminalistics and Process Control Equipment
• CSP
• ILM Series Devices
• ILM-P Series Devices
• FCD-501, FCD-502
• FCD-502-AF
• IKS-450 Device
• Devis-18
• Disteh-VSK
• Security Printed Product Identity Verification Devices
• Devis-04
• Devis-05
• Devis-07A2
• Devis-03M
• Card Reader Devis-ID
• Devis-Vizan
• Special Sensors
• Devis-07AC
• Acousto-optic and Hyper-spectral Technologies
• CSP
• AOTF
• HSV-camera
• Detectors of precious metals and alloys
• DMe-03
• Equipment for ID-card
• Case IDC
• Special laminating-cutting
• Card reader Devis-ID
• Printer with secure printing

Back

FAQ

What is the originality of the security marking on artistic values determined Devis-18?

There is a hidden marking (drawing invisible tags to support the membership of the subject marked the museum's collection.) The most common example of such means of marking labels are based luminophore identified by a characteristic glow under ultraviolet radiation. The second level includes the marking label in which to register an identifier requires the use of special analytical equipment, such as Devis-18. Examples of these can serve as a marking means marks on the basis of the infrared or other spectral luminescence characteristics. Experimental examples using stamp marking method

Can the device Dme-03 to determine the alloy Gold-Silver-585-415 and what is its uniformity?

Dme-03 device in yellow mode identifying alloy Gold-Silver -585-415 detect it as a sample hallmark 585. Uniformity is determined by the Manual for experts in this case, the color uniformity green.

Back
