HSV-camera

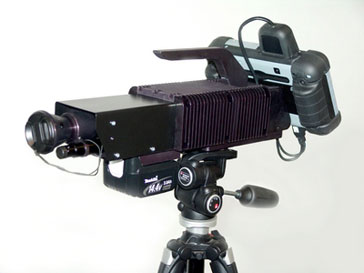

HSV-camera – hyper-spectral video camera based on area imager and acousto-optic tunable filter. HSV-camera serves to obtain and analyze spectral images of any test objects (base maps, environmental settings, subjects of criminalistics and industrial examination). Embedded computer provides registration and processing of measurement data with the operational analysis results output to the display. Special features:

Cooled matrix near-IR photodetector based on InGaAs;
Acousto-optic tunable filter with high spectral resolution;
A secure version for operation in the field.

Technical characteristics:

Parameter name	Value
Spectral range, nm	950-1650
The number of spectral channels	120
Field of view, degrees	26х20
Image size, px	320х240
Time frame, ms	30
Time measurement hyper, s	4
Overall dimensions, mm	540х240х230
Weight, kg	6,0
Work Offline, h	2
Class dust and water tight	IP66
