CSP

Compact spectrophotometer CSP, based on acousto-optical tunable filter is designed to measure the relative diffuse reflectance spectra of flat nonluminescent surfaces of various materials ( paper, cardboard, plastic) , coatings , food samples in the near-infrared region of the optical spectrum.
The instrument allows the positioning of the surface measured with the help of built-in color video camera output spectra measured on its own display, transmit data on the measured objects to a personal computer for later comparison , research and detailed analysis.

Technical characteristics of CSP:

Parameter	Value
Spectral measurement range	In agreement with the customer
Measuring range SKDO%	10 - 100
The bandwidth of 0.5 at a wavelength of 1200 nanometers, nm, of not more than	From 1 nm (software selectable)
Step measuring wavelength	From 1 nm (software selectable)
Limit of acceptable absolute error measurements SKDO%	7
Limit of acceptable error of the wavelength scale, nm	±3
Measuring the aperture diameter, mm	3,0 ± 0,4
Measurement geometry	45º/0º with a ring radiation source
Warm-up time of the device, min, max	5
Time of the measurement, with no more	10
Time of continuous operation, h, not less	10
Power consumed by the device from the AC voltage at the rated voltage, V*A, no more	18
Weight, kg, not more	2
Dimensions, length × width × height, mm	200 × 85 × 60

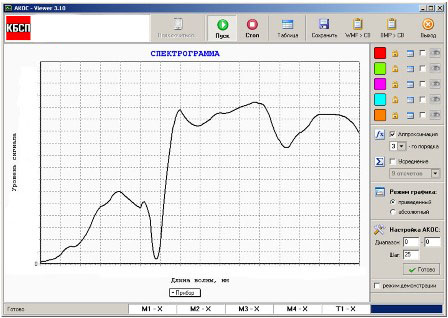

PC software to work with the CSP:
